Home Uncategorized PRESCOTT

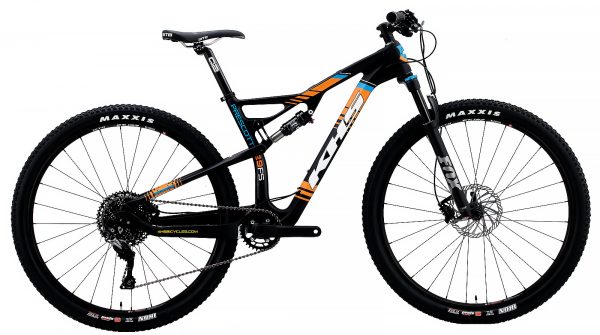

A serious XC race bike for serious riders.

Specifically build for speed. An all performance carbon full suspension XC race bike that’s light and fast.┬áThe dual suspension remote locks out both front and rear shocks simultaneously for climbs and sprints while getting you to the podium with the control, speed and stability of an all out XC race bike.

The ultimate solution for XC competition. Its stiff, lightweight carbon frame and XC Race geometry will have you flying up climbs, while the dual suspension system delivers maximum pedaling efficiency.



Frame: New 29″ Full MSD Carbon, 100mm Travel, 1-1/8~ 1.5 Taper, 12×148 Boost, PF92, 27.5 Plus Compatible
Rear Shock: X-Fusion O2 Pro RL Ext Rebound, Lockout
Fork: FOX Float 32, 29 Std/27.5+ Evol Air, Rhythm, 100mm, Grip 3-Pos Micro Adj., Ext Rebound Adj., 1-1/8~1.5 Taper, 15mm X 110 QR Boost
Headset: FSA Orbit C-40-CF-ACB, N.42/CF/ACB, 1-1/8″~1.5″ Integrated
Rims: WTB STP-i23 TCS, Disc, Double Wall, 29x28H, Tubeless Ready
Hubs (F/R): Formula TD711 S/B Disc, 15X110mm Axle, Straight Pull, Boost; Rear: Cassette, 12 x 148mm, Straight Pull, Boost
Tires: Maxxis Ikon TR 3C Maxx Speed, 120TPI Folding, Triple Compound, Tubeless Ready, 29X2.2
Spokes: 14/15g Black Stainless, w/Alloy Nipples 28×28
Derailleur, Front: n/a
Derailleur, Rear: Shimano SLX RD-M7000
Shifters: Shimano SLX, SL-M7000, 11s, Trigger, Right Only, I-Spec II
Chain: KMC X11EL-1 w/Missing Link
Crankset: Samox 2pc Forged, PF92, Narrow Wide 32T, Boost, S:170,M-L 175
BB: PF92
Cassette: Shimano SLX CS-M7000, 11-46T, 11-speed
Pedals: N/A
Seatpost: Q2 Carbon, 31.6X350mm
Saddle: WTB Volt Comp
Handlebar: Kore XCD-Flat Top, 31.8 x 720mm
Stem: Kore XCD, Alloy 3D Forged, Threadless 4-bolt, 31.8, S: 70mm, M-L: 80mm
Handlebar Grips: Q2 Lock-on
Brake Levers: Shimano MT500, Servo Wave w/ I-Spec II
Brakes: Shimano MT500, Hydraulic Disc, Servo Wave, 180/160mm, Wave 12 Rotors
Color: Matte Black
Frame Size: S/15.5, M/17.5, L/19
