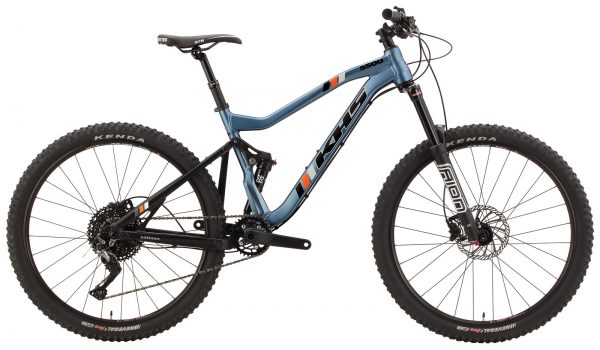

“THE KHS 5500 OUT PERFORMS THE COMPETITION TRAIL BIKES WITH IT’S PRICE AND PERFORMANCE. WITH IT’S SOLID COMPONENTS AND ADVANCED FRAME DESIGN THE 5500 IS THE TRAIL BIKE FOR 2019”
FSS 650B 140mm Plus, Alloy 6061
Engineered and designed with only one thing in mind: FAST!
It’s fast on singletracks, light on climbs, and stable through the rowdiest terrain you can find. The 5500 frame design makes no compromises!
KHS passion for precision engineering and design presents you their advanced technology of materials with this trail frame
SR Aion LOR, 27.5 Air, 150mm
The AION reflects the beauty and diversity of cycling and cyclists. Offering stunning performance, the Aion LOR 27.5 Air is about owning the trail. There is no room for weaknesses or no interest in excuses.
Perfectly integrated with the KHS 5500
WTB STP-I25 TCS
Dependable craftsmanship, durability, rigidity, and tubeless simplicity.
A reliable option for every usage and style of riding, from cross-country to gravity and everything in between.
Optimized for steep climbs to fast descents.
Designed around the concept of performance and leisure, these shimano components expands the versatility and fun to be found at multiple levels of trail and off-road riding.
A trustworthy, durable, lightweight and advanced designed Alloy 6061 frame combined with the SR Aion LOR, Air, 27.5+ 140mm gives a solid and reliable basis for any type of trail. From rock gardens to gnarly descents the 5500 proves it’s worthiness.
One can’t go wrong on the price on a worthy trail bike at $2,349.00. The KHS 5500 rides and handles like a bike that costs twice as much.
The elegant Kore XCD 1 Riser, 760 x 18mm, 31.8mm for high-speed control. The WTB STP-I25 TCS wheels are loyal on rough trails and the KS Suspension eTEN I, Integra w/Remote, Travel Adj seatpost provides the freedom of movement you need.
With 140mm of travel on 27.5-inch wheels, the 5500 continually rides the sharp edge between agility and stability. Ideal for negotiating technical sketchy runs one moment and fast flowing terrain the next,
The Kenda Nevegal tires and the WTB wheels combined will have you riding down steep rocky garden declines with ease while climbing up steep climbs with all the traction you need.
If your looking for a trail bike that will provide you with many years of trail riding and a true value investment that will pay for itself then the 5500 is your new trail bike. Advanced frame design with solid components. The 140 mm of travel makes climbing with ease while the 5500 glides smoothly on steep sketchy descents while tackling rock gardens with ease. Your new 2019 epic trail adventures begins with the 5500.
THE KHS 5500 OUT PERFORMS THE COMPETITION TRAIL BIKES WITH IT’S PRICE AND PERFORMANCE. WITH IT’S SOLID COMPONENTS AND ADVANCED FRAME DESIGN .
|Frame||FSS 650B 140mm, Alloy 6061 w/Custom Formed Double Butted TT & DT, 1.5″ Taper, 12×142 Rear Axle, w/Replaceable Derailleur Hanger|
|Fork||SR Aion LOR, 27.5 Air, 150mm, 34mm Stanchions, Alloy Steerer, Magnesium Lowers, Hydraulic Damp, External Rebound, Lockout, 1.5″ Taper, 15Q|
|Rear Shock||X-Fusion 02 Pro RL, Air, External Rebound, Lockout|
|Headset||FSA Orbit 1.5E, Zero Stack, 1 1/8″~1.5|
|Rims||WTB STP-I25 TCS, Disc, Double Wall, 28H, Tubeless-Ready|
|Hubs (F/R)||Light Weight S/B Alloy Disc, 15mm, Straight Pull, Cassette, 12x142mm, Straight Pull|
|Tires||Kenda Nevegal 2, ATC, 27.5 x 2.4, 120 TPI Folding, Tubeless-Ready|
|Spokes||14g Stainless Black w/Alloy Nipples, 28×28|
|Derailleur, Rear||Shimano SLX RD-M7000|
|Shifter||Shimano SLX, SL-M7000, 11-Speed, Trigger, Right Only|
|Chain||KMC X11-1 w/MissingLink|
|Crankset||Samox 2-pc Forged w/Outboard Bearing, Narrow Wide 32T Chainrings, S: 170, M-XL: 175|
|BB||Outboard Cartridge Bearing|
|Cassette||SunRace, 11-46T, 11-Speed|
|Seatpost||KS Suspension eTEN I, Integra w/Remote, Travel Adj, 31.6|
|Saddle||WTB Volt Sport|
|Handlebar||Kore XCD 1 Riser, 760 x 18mm, 31.8mm|
|Stem||Kore XCD, Alloy 3D Forged, Threadless 4-Bolt, 31.8mm, S: 60mm, M-L: 70mm, XL: 80mm/td>|
|Brake Levers||Shimano MT400|
|Brakes||Shimano MT400 Hydraulic Disc,180/160mm Rotors Wave12|
|Color||Matte Steel Blue|
|Frame Size||S/15, M/16.5, L/18, XL/20|
