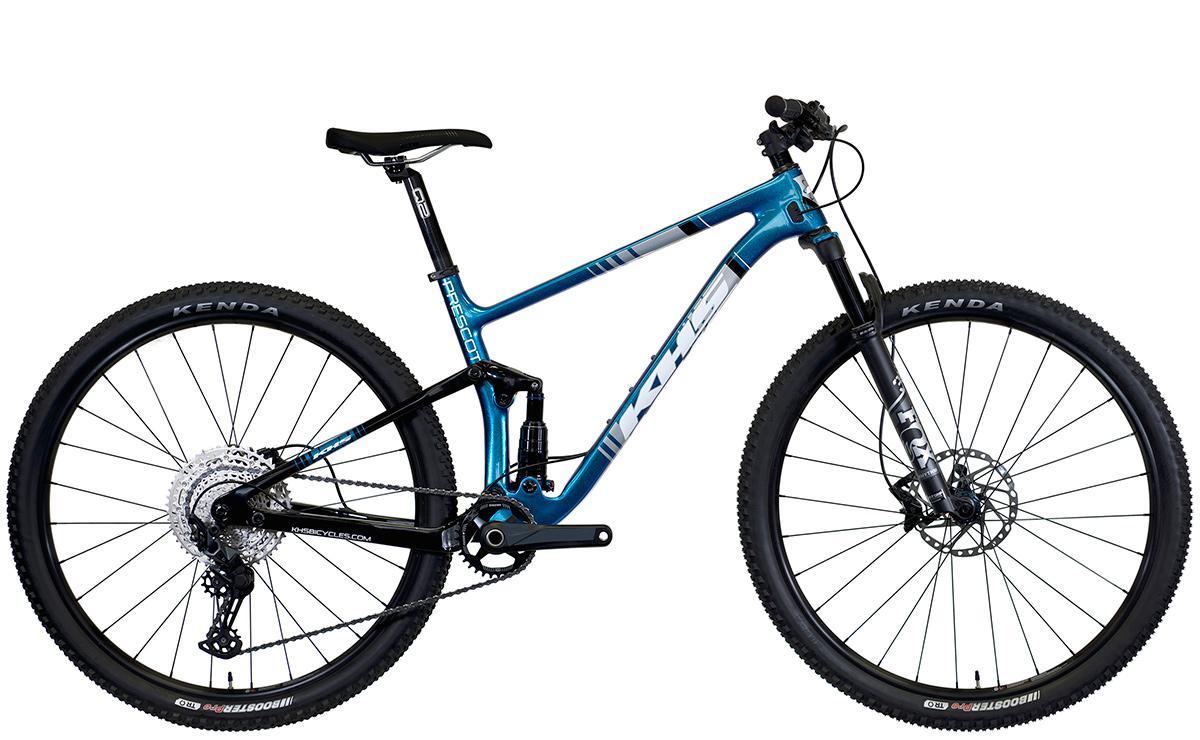

KHS Prescott: Where Design Meets Performance
The KHS Prescott showcases a harmonious blend of design and premium components, ideal for racing and riders who prefer long XC endurance rides and require a lightweight carbon bike with outstanding pedal efficiency. Equipped with Fox Factory Racing suspension and a Shimano drivetrain, this bike features 29" wheels, modern geometry, and proven suspension kinematics, making every marathon, race, fire road, or singletrack trail an exciting competition and adventure!
The KHS Prescott features a lightweight carbon fiber frame enhanced with Shimano XT WH-M8100 12-speed wheels and 29" rims, along with a Q2 carbon fiber seat post. This XC bike is engineered for speed, excelling on both uphill and downhill terrain. It combines speed and style, making it the perfect choice for competitive racing.
Enhanced Pedaling Performance
The KHS Prescott is a premier racing machine engineered for exceptional pedaling efficiency, specifically tailored for serious competitors in XC marathon races. Its ultra-lightweight, full-suspension carbon frame enhances speed and maneuverability, while the meticulously designed suspension system delivers a responsive ride over challenging obstacles. With 110 mm of travel, it balances support for powerful pedaling and maintains a smooth progression throughout the pedal stroke, ensuring a dynamic experience on any terrain. The bike's confidence-inspiring geometry provides superior handling, guaranteeing top-notch performance in competitive settings. Crafted from premium materials, the Prescott is built for speed and versatility, making it the ideal choice for riders seeking the pinnacle of performance and technology.
If you’re serious about purchasing this bike for racing, you may be eligible for a team discount. Click here to contact the team director Logan Binggeli for all inquiries.
Geometry
| Frame | 29” Full MSD Carbon, 4-bar Horst 110mm Travel, 1-1/8~ 1.5 Taper, 12x148mm Boost, 27.5 Plus Compatible |
| Rear Shock | Fox Float DPS, Air, Ext Rebound, Lock-Out, 165x45 |
| Fork | FOX Float 34 Step Cast, 29 Std/27.5+ Evol Air, Rhythm, 120mm, Performance Evolair, Grip, 3 POS, Ext Rebound Adjust, 1-1/8~1.5 Taper, 15X110mm QR Boost |
| Headset | FSA Orbit C-40-CF-ACB, N.42/CF/ACB, 1-1/8”~1.5” Integrated |
| Rims | Shimano XT WH-M8100 12S, 29” Disc, Straight Pull, Tubeless-Ready |
| Hubs, Front | Shimano XT WH-M8100, 15x110mm Boost |
| Hubs, Rear | Shimano XT WH-M8100, 12x148mm Boost |
| Tires | Kenda Booster Pro, 120TPI Folding, Tubeless-Ready, 29x2.2 |
| Spokes | 14/15g Black Stainless, w/Aluminum Nipples 28x28 |
| Derailleur, Front | n/a |
| Derailleur, Rear | Shimano XT RD-M8100 |
| Shifters | Shimano SLX, SL-M7100, 12s, Trigger, Right Only, I-Spec EV |
| Chain | Shimano CN-M6100 |
| Crankset | Shimano FC-MT511, 2-pc, Boost, 32T, S:170, M-L:175 |
| BB | Shimano Outboard Bearing |
| Cassette | Shimano CS-M6100, 10-51T, 12-speed |
| Pedals | n/a |
| Seatpost | Q2 Carbon, 31.6mmx350mm |
| Saddle | WTB Volt Medium SL |
| Handlebar | FSA Comet Low Riser, 31.8mm, 15x760mm |
| Stem | FSA V-Drive, 3D Forged, 4-bolt, 6 Degree, 31.8mm, S:60mm, M:70mm, L:80mm |
| Grips | Q2 Lock-on |
| Brake Levers | Shimano M6100, Servo Wave. I-Spec EV |
| Brakes | Shimano M6100, Hydraulic Disc, Servo Wave, 180/160mm, RT64 CenterLock Rotors |
| Color | Metallic Blue |
| Frame Size | S/16, M/17.5, L/19 |
