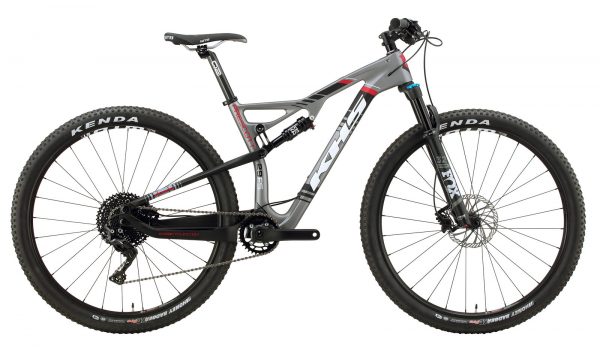

A serious XC race bike for serious riders.

Specifically build for speed. An all performance carbon full suspension XC race bike that’s light and fast. The dual suspension remote locks out both front and rear shocks simultaneously for climbs and sprints while getting you to the podium with the control, speed and stability of an all out XC race bike.


The ultimate solution for XC competition. Its stiff, lightweight carbon frame and XC Race geometry will have you flying up climbs, while the dual suspension system delivers maximum pedaling efficiency.

This product is currently out of stock and unavailable.

SKU: N/A Category:


“Smash climbs. Rail descents. Steal the show. The KHS Prescott gives you the control, stability and speed you need to be the #1 on the podium.” – Quinton Spaulding

[vc_custom_heading text=”THE KHS PRESCOTT FEATURES” font_container=”tag:div|font_size:40PX|text_align:center|color:%23000000|line_height:40PX” google_fonts=”font_family:Roboto%3A100%2C100italic%2C300%2C300italic%2Cregular%2Citalic%2C500%2C500italic%2C700%2C700italic%2C900%2C900italic|font_style:700%20bold%20italic%3A700%3Aitalic”]
New 29″ Full MSD Carbon, 100mm Travel

Engineered and designed with only one thing in mind: FAST!

Full MSD carbon frame bike with race-level components. Fast and light on climbs, and stable through the rowdiest terrain you can find. KHS passion for precision engineering and design presents you their advanced technology of materials with this XC Race carbon frame


All-Around Cross-Country Performance

With plenty of options to choose from — including axle, wheel size, steerer and travel options — the standard chassis 32 has something for everyone.

FLOAT EVOL air spring

Lightweight design to get you up every mountain

Lockout for increased efficiency


Tubeless mountain biking

UST compliant bead hooks border a tape and sealant-driven inner rim profile, providing standards-based, repeated tubeless consistency.


Optimized for steep climbs to fast descents.

High performance groupset cascaded from XTR and SHIMANO DEORE XT
Enhanced stability, maneuverability and shifting efficiency
High power and controllable braking for all MTB riding styles

[vc_custom_heading text=”THE KHS PRESCOTT HIGHLIGHTS” font_container=”tag:div|font_size:40PX|text_align:center|color:%23000000|line_height:40PX” google_fonts=”font_family:Roboto%3A100%2C100italic%2C300%2C300italic%2Cregular%2Citalic%2C500%2C500italic%2C700%2C700italic%2C900%2C900italic|font_style:700%20bold%20italic%3A700%3Aitalic”]

The FOX Float 32 std gives a solid and reliable basis for racing or fun on any terrain.

The Prescott is built with standard high-performance parts designed for speed. Think fast!

The Shimano SLX, SL-M7000 11-speed gears gets you up any incline while the powerful Shimano MT500 brake disc gives you plenty of braking power on frenetic downhills.

The elegant Kore Durox has wide 780mm bars and a short stem for high-speed control. The WTB Scraper wheels are loyal friends on rough trails and the Kind Shock E30i seatpost provides the freedom of movement you need.

With 100mm of travel on 29-inch wheels, the Prescott continually rides the sharp edge between agility and stability. Ideal for negotiating technical sketchy runs one moment and fast flowing terrain the next,

The perfect combination of Kenda wheels with the Formula TD711 S/B Disc hubs for downhill and uphill competition and epic adventures.

[vc_custom_heading text=”RECOMMENDATIONS” font_container=”tag:div|font_size:40PX|text_align:center|color:%23000000|line_height:40PX” google_fonts=”font_family:Roboto%3A100%2C100italic%2C300%2C300italic%2Cregular%2Citalic%2C500%2C500italic%2C700%2C700italic%2C900%2C900italic|font_style:700%20bold%20italic%3A700%3Aitalic”]

If your looking for a fast 29er carbon bike for the best performance on everything from XC/ Enduro races to gnarly descents and technical trails or just riding on the bike park trails and not planning to compromise on frame material, suspension, or components then this is your bike. We have champions all over the world riding the Prescott.

Premium components with an advanced frame design that’s light, durable and engineered for speed.

-Quinton Spaulding

[vc_custom_heading text=”SPECIFICATIONS AND GEOMETRY” font_container=”tag:div|font_size:40PX|text_align:center|color:%23000000|line_height:40PX” google_fonts=”font_family:Oswald%3A300%2Cregular%2C700|font_style:700%20bold%20regular%3A700%3Anormal”]
Frame New 29″ Full MSD Carbon w/ Internal Cable Routing, 100mm Travel, 1-1/8~ 1.5″ Taper, 12x148mm Boost, PF92, 27.5 Plus Compatible
Fork FOX Float 32, 29 Std/27.5+ Evol Air, Rhythm, 100mm, Grip Sweep Adjust, External Rebound Adjust, 1-1/8~1.5″ Taper, 15mm X 110 QR Boost
Rear Shock X-Fusion O2 Pro RL External Rebound, Lockout
Headset FSA Orbit C-40-CF-ACB, N.42/CF/ACB, 1-1/8″~1.5″ Integrated
Rims WTB ST-I25 TCS, Disc, Double Wall, 29x28H, Tubeless-Ready
Hubs (F/R) Formula TD711 S/B Disc, 15X110mm Axle, Straight Pull, Boost, Cassette, 12x148mm Boost
Tires Kenda Honey Badger, 120TPI Folding, Tubeless-Ready, 29×2.2
Spokes 14/15g Black Stainless, w/Alloy Nipples 28×28
Derailleur, Front n/a
Derailleur, Rear Shimano XT RD-M8000
Shifter Shimano SLX, SL-M7000, 11-Speed, Trigger, Right Only, I-Spec II
Chain KMC X11EL-1 w/MissingLink
Crankset Samox 2-pc Forged, PF92, Narrow Wide 32T, Boost,
S: 170, M-L: 175
Cassette SunRace, 11-46T, 11-Speed
Pedals n/a
Seatpost Q2 Carbon, 31.6x350mm
Saddle WTB Volt Comp
Handlebar Kore XCD-Flat Top, 31.8mm x 720mm
Stem Kore XCD, Alloy 3D Forged, Threadless 4-Bolt, 31.8mm, S: 70mm, M-L: 80mm
Grips Q2 Lock-on
Brake Levers Shimano MT501, Servo Wave w/I-Spec II
Brakes Shimano MT501, Hydraulic Disc, Servo Wave, 180/160mm
Wave12 Rotors
Color Matte Gray
Frame Size S/15.5, M/17.5, L/19
[vc_custom_heading text=”KHS TEAM 29 FS REVIEWS” font_container=”tag:div|font_size:40PX|text_align:center|color:%23000000|line_height:40PX” google_fonts=”font_family:Roboto%3A100%2C100italic%2C300%2C300italic%2Cregular%2Citalic%2C500%2C500italic%2C700%2C700italic%2C900%2C900italic|font_style:700%20bold%20italic%3A700%3Aitalic”]

“Totally impressed and amazed with the KHS Prescott”

I decided to invest in the 2018 KHS Prescott and it was the best decision I made in upgrading to a 29.


“Well worth the price for a full suspension 29er”

I had the opportunity to demo the 2019 Prescott and was quite pleased with the ride and handling of it. I was more eager it seeing how it climbed.


“Big and light wheels and tires, very fast and sturdy at a reasonable price.”

Awesome design this year and the geometry of the bike feels comfortably fit. Combined the fox forks with the full lock out climbing and you have a…
